Old Price: 70400 Taka
New Price: 60000 Taka
about this item:
- Code: TNSFR
- Available: Available
- Category: Camera | FR Camera
- Brand: TOUCH
- Shipping Fee: Free
Model | TNSFR-9423A3 |
Camera | |
Image Sensor | 1 / 2.8 "CMOS |
Image Size | 1920 × 1080 |
Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
Iris Type | DC-IRIS |
Min. Illumination | 0.0026 lux@F1.2, AGC ON; 0 lux with LED |
0.005 lux@F1.6, AGC ON; 0 lux with LED | |
Lens | 7~22mm@F1.6, motorized; |
Recommended face capturing distance: 4~10m | |
Field of View | Horizontal: 44°~17.6°; Vertical:25.6°~10°; Diagonal: 49.7°~20.2° |
Lens Mount | Φ14 |
Wide Dynamic Range | 120dB |
BLC | Yes |
HLC | Yes |
Defog | Yes |
Digital NR | 3D DNR |
Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
Image | |
Video Compression | Main stream: Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 |
Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |
Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG | |
H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
Main Stream | 60Hz : 1080P/ 720P (1 ~ 30fps ); 50Hz : 1080P/ 720P (1 ~ 25fps ) |
HFR mode: 1080P/720P (60Hz: 1~60fps; 50Hz: 1~50fps) | |
Sub Stream | 60Hz : 720P/D1/CIF (1~30fps); 50HZ:720P/D1/CIF (1~25fps) |
Third Stream | 60Hz : D1/CIF 480 ×240 (1~30fps); 50Hz: D1/CIF 480 ×240 (1~25fps) |
Bit Rate | 64 Kbps ~ 6 Mbps |
Bit Rate Type | VBR / CBR |
Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR, etc. adjustable through client software or web browser |
Audio Compression | G711A/U |
ROI | Each ROI to be configured separately |
Interfaces | |
Network | RJ 45 |
Video Output | No |
Audio | 1CH audio input; 1CH audio output |
Storage | Built-in micro SD card slot, up to 256GB |
Reset | Yes |
Alarm | 1CH alarm input; 1CH alarm output |
Functions | |
Remote Monitoring | Web browsing,CMS remote control |
Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, FTP, PPPoE, DDNS, SMTP,SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS |
Interface Protocol | ONVIF |
Storage | Network remote storage; micro SD card storage |
Smart Alarm | Motion detection; Sensor alarm; SD card full SD card error; IP address conflict; Network disconnection |
Intelligent Analytics | Face detection, face capture, face match, video blur detection, video color cast detection, scene change detection |
General Function | Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, face exposure |
PoE | Yes (802.3af) |
LED View Distance | 10 m soft light |
Ingress Protection | IP 67 |
Face Detection | |
Face Detection | Pupil distance of a facial image over 20 pixel can be detected |
Face Capturing | By precise detecting, tracing, capturing, scoring and screening the moving faces to get the most effective face snapshots |
Panorama Capturing | Support panorama capturing and self-defined information overlay, like |
device ID, time, etc. | |
Intelligent Light Compensation | Built-in high efficient white light LEDs, time switch available |
Face Picture Database | 10000 face pictures |
Database Management | Add, modify, delete and search face pictures |
Face Picture Adding | Add face pictures through WEB and Face Album Manager Tool |
External Face Picture Enrollment | Size: less than 70KB Format: jpg, jpeg |
Face Picture Comparison Alarm | Support face trigger modes |
Support allow list, block list, stranger alarms | |
Others | |
Power Supply | DC12V/PoE |
Power Consumption | < 12W |
Operating Environment | - 30 °C ~ 60 °C (-22°F~140°F) |
Humidity: less than 95 % (non-condensing) | |

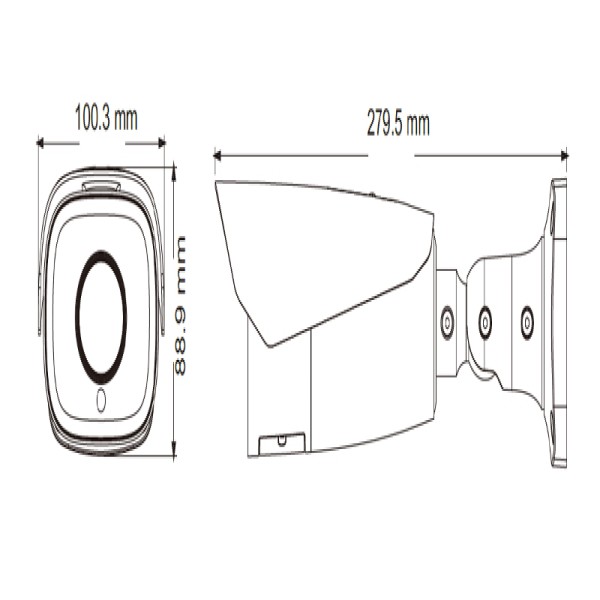

Dimensions ( mm ) | 279.5 × 100.3 ×88.9 |
Weight ( net ) | Approx. 1.04KG |
Installation | Wall mounting; ceiling mounting |
Certificate | CE, FCC |
Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
In an era where technology is continually advancing, one of the most transformative innovations to emerge is Facial Recognition (FR) cameras. While the applications of FR technology span various sectors, its integration into educational institutions, particularly for attendance management, holds promising potential. This blog post delves into the benefits of FR cameras for school and college students' attendance.
1. Efficiency and Accuracy
Traditional methods of attendance, such as manual roll-calls or biometric scanners, can be time-consuming and susceptible to errors. With FR cameras, the process becomes automated, eliminating the need for manual intervention. As students enter the classroom or lecture hall, the cameras instantly capture and verify their identities, ensuring accuracy in attendance records.
2. Enhanced Security
FR cameras not only track attendance but also enhance security within educational institutions. By recognizing faces, these cameras can identify unauthorized individuals attempting to enter restricted areas or facilities. This feature ensures a safer environment for students, faculty, and staff, minimizing potential threats.
3. Time-Saving for Educators
For educators, time is a precious commodity. By automating the attendance process through FR cameras, teachers can allocate more time to instructional activities rather than taking roll calls or managing attendance sheets manually. This efficiency translates into a more productive learning environment.
4. Real-Time Monitoring
FR cameras provide real-time monitoring capabilities, allowing administrators to track attendance patterns, identify trends, and make informed decisions. Whether it's analyzing student participation rates or identifying potential truancy issues, these insights empower educational institutions to address attendance-related challenges proactively.
5. Integration with Existing Systems
Modern FR camera systems are designed to integrate seamlessly with existing school management software and databases. This compatibility ensures a smooth transition for institutions looking to adopt this technology, minimizing disruption and maximizing efficiency.
6. Reduced Administrative Burden
By automating the attendance process, FR cameras reduce the administrative burden on school and college staff. This streamlined approach eliminates manual data entry, reduces paperwork, and enhances overall operational efficiency, allowing educational institutions to focus on their core mission: fostering academic excellence.
7. Enhanced Student Experience
From a student's perspective, the use of FR cameras offers a seamless and hassle-free attendance experience. Gone are the days of waiting in line for roll calls or forgetting to sign attendance sheets. With FR technology, students can enter classrooms with confidence, knowing that their attendance is being recorded accurately and efficiently.
